Rapid Inactivation of SARS-CoV-2 by Coupling Tungsten Trioxide (WO3) Photocatalyst with Copper Nanoclusters
Silvia Ghezzi1, Isabel Pagani1, Guido Poli2, Sudipto Pal3, Antonio Licciulli3, Stefano Perboni4*, Elisa Vicenzi1*
1Viral Pathogenesis and Biosafety Unit, IRCCS San Raffaele Scientific Institute, Milan, Italy
2Vita-Salute San Raffaele University School of Medicine, Milan, Italy
3Department of Innovation Engineering, University of Salento, Via Per Monteroni, Lecce, Italy
4Nanohub, Milan, Italy
- *Corresponding Author:
- Elisa Vicenzi
- Stefano Perboni
Received date: August 14, 2020; Accepted date: December 02, 2020
Citation: Ghezzi S, Pagani I, Poli G, Pal S, Licciulli A, Perboni S, et al. Rapid Inactivation of SARS-CoV-2 by Coupling Tungsten Trioxide (WO3) Photocatalyst with Copper Nanoclusters J Nanotechnol Nanomaterials. 2020; 1(3): 109-115.
Copyright: © 2020 Ghezzi S, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Severe acute respiratory syndrome coronavirus-2 (SARS-CoV-2), the etiological agent of coronavirus disease 2019 (COVID-19) is transmitted person-to-person via respiratory droplets and through smaller droplets that are light enough to form an aerosol that remain suspended in the air and contaminate the surfaces particularly in indoor conditions. Thus, effective measures are needed to prevent SARS-CoV-2 transmission in indoor environments. In this regard, we have investigated the ability of a system based on combining tungsten trioxide-based (WO3) photocatalyst and copper nanoclusters coated fabric to inactivate SARS-CoV-2. To this purpose, an infectious SARS-CoV-2 suspension was introduced in a photocatalytic reactor containing a WO3 coated grid and a lighting system that activates WO3. Aliquots of fluid were collected every 10 min (up to 60 min) and tested for their infectivity by means of a viral plaque assay in Vero cells whereas, in parallel, the viral RNA content was measured by quantitative PCR (qPCR). A 1:3,400 ratio of plaque forming units (PFU) vs. viral RNA copies was observed for SARS-CoV-2. After 10 min, the infectious viral content was decreased by 98.2% reaching 100% inactivation after 30 min whereas the SARS-CoV-2 RNA load was decreased of 1.5 log10 after 30 min. Thus, despite only a partial decrease of viral RNA, SARS-CoV-2 infectivity was completely inactivated by the system in 30 min. These results support the idea that this system could be exploited to achieve SARS-CoV-2 inactivation not only for liquids but also for air purification in indoor environments.
At the end of 2019, a novel severe respiratory disease (coronavirus disease 2019, COVID-19) spread to Wuhan, China, it became pandemic in few months, with more than 41 million people infected worldwide as of October 2020. COVID-19 is caused by a novel virus called severe acute respiratory syndrome (SARS) CoV-2 to distinguish it from SARS-CoV that emerged in Guangdong province in China in 2003 and caused the severe clinical condition known as SARS. Like SARS-CoV, SARS- CoV-2 causes a severe interstitial pneumonia that leads to acute respiratory distress syndrome (ARDS) and death [1-5].
The transmission of SARS-CoV-2 is not yet completely defined as airborne . The droplets are expelled when a person speaks, particularly with a loud voice , coughs and sneezes  whereas aerosols originate from dissemination of the droplet nuclei . Both droplets and aerosols have been shown to contain SARS-CoV-2 suggesting that they are a potential source of infectious virus although the virus infectivity has not been yet determined . As the droplets are classically described as larger entities (>5 μm) as compared with aerosols (<5 μm), they quickly drop to the surfaces and ground by force of gravity whereas aerosols remain suspended in the air for a longer time . Experimental studies have shown that the SARS-CoV-2 virions can remain infectious in aerosol for hours and on inert surfaces up to days . Furthermore, during SARSCoV pandemic in 2003, a major route of transmission was identified in aerosols generated in the sewing systems as observed in an apartment building in Hong Kong, suggesting that not only infected droplets, but also droplet nuclei, can be a source of infectious virus . Furthermore, as most of the secondary cases have been reported in indoor environments , device that inactivate infectious virions present in the droplets and droplet nuclei might prevent the spreading of the infection.
Virus inactivation by physical means has been extensively studied, as reviewed in . Photocatalysis is the natural phenomenon by which the speed of a chemical reaction is accelerated through the action of either natural or artificial light . Titanium dioxide (TiO2) photocatalysts have been widely used in this field. The disadvantage of TiO2 photocatalyst is that it needs to be exposed to ultraviolet (UV) light in order to be activated  thus causing adverse health issues. In this regard, the development of visible light active photocatalysts is highly desirable and recently tungsten trioxide (WO3)-based photocatalysis has significantly increased the attention due to its high stability in acidic/oxidative environment and its ability to absorb the whole visible light spectrum . Upon visible light exposure, WO3 absorbs the photon that excites the valance band electron to the conduction band creating electron-hole pair, which reacts with water (air humidity) and oxygen to create hydroxyl radicals (·OH) and superoxide anions (O2-) . Billions of these reactive oxygen intermediates (ROI) are generated which can effectively damage the membranes of bacteria, cells, and tissues . The ultimate result is an effective decomposition of pathogens like viruses and bacteria and organic and inorganic pollutants, nitrogen oxides, poly-condensed aromatics, sulfur dioxide, carbon monoxide, formaldehyde, methanol, ethanol, benzene, ethylbenzene and other volatile organic compounds (VOCs) . The strong oxidative effect of WO3 provides the rationale to explore it as a disinfectant of air and solid surfaces. Although many studies have been reported on photocatalytic inactivation of bacteria, only a few studies have addressed virus inactivation . Another pathogen killer is copper and its compounds which have been used as disinfectant, antimicrobial and antiviral agent for many years [22-24]. By combining the two processes in one system, a superior efficiency of virus inactivation is expected.
Many studies have shown that copper surfaces can release ions that cause oxidative stress by producing reactive oxygen species (ROS) . Copper coated filters can therefore inactivate viruses by contact killing mechanism while the virus containing fluids passes through the device . As antiviral and antibacterial mechanism of copper is well known and documented, the copper nanoparticles (CuNPs) coated fabric was kept inside the filtration system. The antiviral activity should take place where the copper ions are released from the copper surface. Copper could easily oxidize in presence of humidity and air, especially when it comes to submicron sizes.
On these premises, we have evaluated the combination of WO3 based photocatalyst system and copper coated fluid filters to interfere with SARS-CoV-2 infectivity.
Materials and Methods

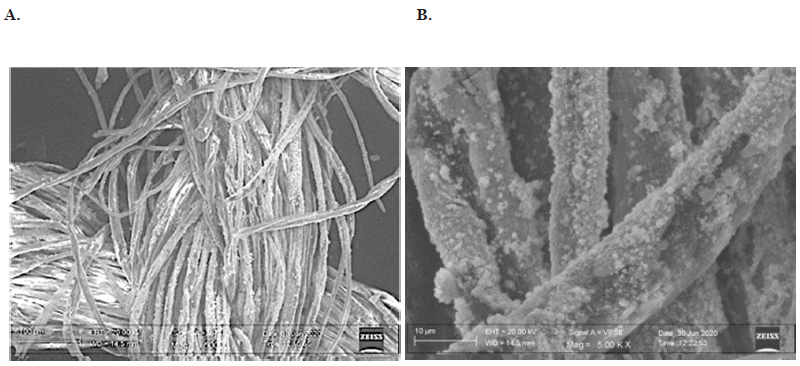

The photocatalytic system used in this study is in liquid phase and relies on the combination of two elements: a metallic mesh filter coated with WO3 nanoclusters and a cotton fabric treated with metallic CuNPs. To prepare the CuNPs coated fabric, a wet chemical synthesis process was used following the modified process described by Zhou et al. . Briefly, Cu nanoclusters were first synthesized in the aqueous media from Cu cations dissolved from copper acetate monohydrate salt (98%, Sigma-Aldrich) and hydrazine hydrate (80% solution in water, Sigma-Aldrich) as the reducing agent. All reagents were ACS grade. Cations were reduced and clustered in the aqueous medium. The fabric was immersed in the nanocluster suspension for 6-8 hours. The metal nanoparticles spontaneously deposit on to the fabric threads by attraction of the hydroxyl groups present on the cotton-based fabric (coming from the cellulose part of the fabric). The dispersion efficiency is evaluated in terms of weight gain due to the copper deposition on the fabric. The integrity of the layer of CuNPs deposited on the fibers and WO3 nanoclusters were analyzed by scanning electron microscopy (SEM) by using a ZEISS EVO 4°C VP microscope.
SARS-CoV-2 plaque assay
The SARS-CoV-2 stock (GISAID accession ID: EPI_ ISL_413489) was diluted 1:100 to obtain 80 ml of viral suspension with an infectious titer of 1.7x104 plaque forming units (PFU)/ml. The viral suspension was introduced into the device from its top and aliquots were collected at the bottom every 10 min up to 60 min. The collected viral suspension was then tested for the presence of infectious virus as determined by a previously optimized plaque assay on Vero cells  and quantification of viral RNA by real-time PCR, described below.
Vero cells were seeded at 1.5x106 cell/well in 6-well plates in Eagle’s Minimum Essential Medium (EMEM) supplemented with 10% fetal calf serum (complete medium). After 24 h, 1:10 serial dilutions of the virus containing suspensions were collected at various time intervals after processing through the device and were incubated with Vero cells for 60 min. Cell supernatants were then discarded and 1% methylcellulose (1.5 ml/well) dissolved in complete medium was added to each well. After 3 days, cells were fixed with formaldehyde/PBS solution (6%) and stained with crystal violet (1%; Sigma Chemical Corp.) in 70% methanol. Viral plaques were counted under a stereoscopic microscope (SMZ-1500, Nikon) according to the previous article . Viral titers were expressed as PFU/ml.
SARS-CoV-2 quantitative PCR
Viral RNA was extracted from the viral suspension collected at different time intervals after processing through the device. Viral RNA was extracted by using QIAamp Viral RNA Mini Kit (Qiagen). Real-time quantitative PCR (qPCR) for the nucleocapsid (N) gene was performed to determine the viral RNA copies present after inactivation. The viral RNA quantification was carried out with the Quanty COVID-19 Kit (Clonit, Milan, Italy) that includes a reference curve of viral RNA at known copy number with a 7500 Fast Real-Time PCR System (Applied Biosystems).
Prism GraphPad software v. 8.0 (www.graphpad.com) was used for all statistical analyses. Comparison among groups were performed using the one-way analysis of variance (ANOVA) and the Bonferroni’s multiple comparison test. Comparison between two homogenous groups was performed by a paired t-test.
Results and Discussion

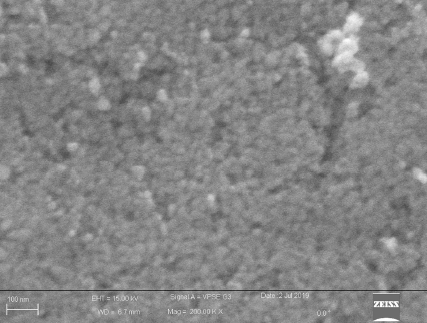

The distribution of WO3 nanocluster coated on the metallic mesh filter is shown in Figure 1. The particles were well sticked and homogeneously distributed on the surface of the metallic mesh filter. The particle size had a medium size of 25 nm. The morphology of copper coated fibers is shown in Figure 2. The average particle size of copper nanoparticles is in the range of 300 nm (Figure 2A). Agglomeration of individual CuNPs takes place randomly during the deposition process as shown in Figure 2B.

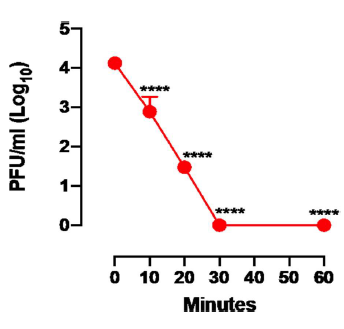

To evaluate SARS-CoV-2 inactivation, the virus inoculum was introduced in the photocatalytic reactor containing the WO3/CuNPs filter and the light-based system that activates WO3 and aliquots of the viral suspension were collected after 10 min and continued up to 30 min. As shown in Figure 3, the kinetic of infectious virus, as expressed in PFU/ml, indicates that, after 10 min, the WO3 device inactivated SARS-CoV-2 infectious titers by 98.2% and reached 100% inactivation after 30 min.

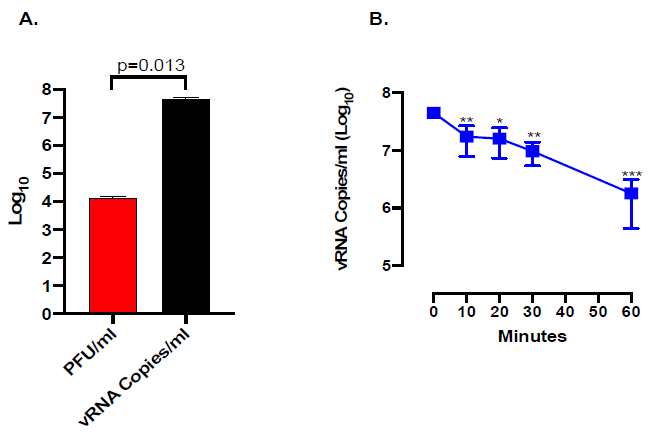

The amount of viral RNA by qPCR was evaluated; as shown in Figure 4A, the levels of viral RNA in the inoculum were ca. 3,400-fold higher than the infectious titers measured in PFU/ml consistently with previous observations with SARS-CoV . Indeed, the WO3/CuNPs inactivation system progressively and significantly reduced the amount of detectable viral RNA (Figure 4B), although not as efficiently as in the case of PFU inactivation.
The WO3 photocatalyst generates a large number of ROI that react very rapidly and efficiently with proteins, lipids and nucleic acids . The destruction of viral proteins, particularly the spike protein that protrudes out of the envelope and the other envelope proteins (i.e. envelope (E) and membrane (M)) likely explains the rapid inactivation of SARS- CoV-2 infectivity. It is tentative to speculate that the generated ROI damage the virion envelope causing the release of genomic RNA, the internal component of viral particles. However, this phenomenon is less efficient than the destruction of the viral protein as genomic RNA is well preserved inside the virion packaged by the tightly bound nucleocapsid protein that likely exerts a shield effect .
In comparison to other systems, such as those based on UV light , this system has the advantage to be used safely in the presence of people. All reactions (e.g. virus inactivation and disintegration of other substances) take place in the filter without the release of substances that could be potential hazardous to human and animal health. Furthermore, this system has minimum maintenance requirements and low electricity consumption. The test was carried out in liquid through SARS-CoV-2 contact with the photocatalytic filter and antiviral tissue. It is expected that similar results would be obtained with an air treatment device that uses the same filtration system in indoor environments.
In conclusion, combination of photocatalytic and copper disinfection has the potential to significantly reduce SARSCoV- 2 titer in liquid and in air and, consequently, the contamination of surfaces. The system might contribute to a more general containment of the pandemic in synergy with social distancing and individual measures of protection and hygiene. Our study supports the hypothesis that a technological device could be used for the inactivation of infectious SARS-CoV-2, and potentially of other viruses, from the air particularly in indoor environments.
