Perivascular Adipose Tissue: Quantitative Analysis by Morphometry and Stereology in Rodents
Felipe Demani Carneiro1, Stephanie Christinne Sinder Mello1, Emiliana Barbosa Marques2,Rogerio Barbosa Magalhaes Barros2, Christianne Bretas Vieira Scaramello2, Caroline Fernandes-Santos1*
1Lab. Multiusuário de Pesquisa Biomédica, Departamento de Ciências Básicas, Instituto de Saúde de Nova Friburgo, Universidade Federal Fluminense – UFF. Rua Dr. Silvio Henrique Braune, 22, Centro, CEP 28.625-650, Nova Friburgo, RJ, Brazil
2Lab. de Farmacologia Experimental, Departamento de Fisiologia e Farmacologia, Instituto Biomédico, Universidade Federal
Fluminense – UFF. Rua Prof. Hernani Melo, 101, CEP 24210-130, São Domingos, Niterói, RJ, Brazil
- *Corresponding Author:
- Caroline Fernandes-Santos
Received date: March 26, 2020; Accepted date: May 12, 2020
Citation: Carneiro FD, Mello SCS, Marques EB, Barros RBM, Scaramello CBV, Fernandes-Santos C. Perivascular Adipose Tissue:
Quantitative Analysis by Morphometry and Stereology in Rodents. J Diabetes Clin Res. 2020; 2(1):20-29.
Copyright: © 2020 Carneiro FD, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
The perivascular adipose tissue (PVAT) provides mechanical support to blood vessels and modulates vascular physiology in obesity. Our goal is to provide a protocol of morphometric and stereological tools to assess PVAT morphology. The thoracic aorta from male Wistar rats (n=6) and C57BL/6 mice (n=7) underwent routine histological procedures, and two independent observers analyzed the same set of digital images. Agreement and reproducibility were assessed. Both observers showed that the diameter of rat brown adipocytes is larger than mice (P<0.002), and that the number density (QA) of brown adipocytes is smaller in rats compared to mice (P<0.01). Considering lipid droplets, observer #1 reported that in rats they were larger (P<0.005) and had a higher volume density (VV) than mice (P=0.035), but observer #2 found the opposite for lipid droplet diameter (P=0.001). White adipocytes were not found in the PVAT. Bland-Altman plots demonstrated agreement and reproducibility between observers since the means are close to the main difference (bias) and within the 95% limits of agreement. In conclusion, the methodology proposed can quantify morphological aspects of the aorta PVAT in rodents. It is reproducible and can be performed by both expert and inexperienced researchers, once they know how to recognize the structures of interest to be measured.
PVAT, Aorta, Quantification, Morphology
Virtually all arteries, except brain arteries, are surrounded by a significant amount of perivascular adipose tissue (PVAT) . It was thought that the PVAT was only responsible for the mechanical protection of vessels against neighboring tissues during contraction . However, recent studies have shown that the PVAT is accountable for the mechanical support of blood vessels and the secretion of various substances. Among them, there are a large number of metabolically active adipokines, chemokines (e.g., interleukin-6 and tumor necrosis factoralpha), hormone-like factors (e.g., leptin, adiponectin, and resistin), and vasoactive substances (e.g., prostacyclin, adiponectin, and prostaglandin) .
In rodents, the thoracic aorta PVAT consists of brown adipocytes that morphologically resemble the classic brown adipocytes found in interscapular brown adipose tissue (iBAT). The abdominal aorta PVAT is composed of a mixture of brown and white adipocytes, and the PVAT from other arteries such as mesentery, femoral and carotid arteries consists only of white adipocytes . In conditions such as obesity and diabetes, the PVAT becomes dysfunctional. It expands in size, accumulates inflammatory cells, and changes its secretory profile of several adipokines and proinflammatory cytokines .
Morphometry is a two-dimensional quantitative method, which aims to determine parameters such as lengths, perimeters, and areas. It can be easily performed using an appropriate image analysis software such as ImageJ (free, https://imagej.nih.gov/ij/?) and Image-Pro Plus (paid, http://www.mediacy.com/imageproplus). On the other hand, design-based stereology methods rely on statistical sampling principles and stochastic geometric theory to estimate quantitative parameters of three-dimension geometric objects in complex tissue structures [6,7]. Stereology uses test-system probes such as points, lines, and frames to estimate volumes, surfaces, lengths, and numbers of the structure of interest. Stereology uses tissue sections that only show two-dimensional information and provides two- and three-dimensional information, whereas morphometry only makes assumptions in twodimensions.
It is essential to assess the morphological characteristics of PVAT by morphometric tools since this tissue has a powerful influence on vascular physiology and is considered a distinct tissue regarding anatomical location, histological characteristics, and molecular biology . To date, there is no methodology published describing how to assess morphometric and stereological parameters of PVAT. Thus, our purpose is to provide some morphometric tools to study PVAT morphology. For this, we used the thoracic aorta PVAT of albino Wistar rats and C57BL/6 mice. Since rats and mice differ in body size, we expect that rat PVAT cells are larger than mice, and thus we tested whether the methodology proposed can detect differences between rats and mice. Also, the analyses were performed by two independent observers with and without previous experience in morphological quantification, to assess the impact of expertise on reproductivity.
Materials and Methods
PVAT collection and processing
The local Ethics Committee approved the handling and experimental protocols to Care and Use of Laboratory Animals (CEUA#647/15). The study was performed in agreement with the Animal Research Reporting in vivo Experiments ARRIVE guidelines and the Guideline for the Care and Use of Laboratory Animals (US NIH Publication N° 85-23. Revised 1996) . Male C57BL/6 mice (n=7) and male albino Wistar rats (n=6) with five months old were used. Animals were obtained from colonies maintained at the Federal Fluminense University Animal Care Facility and kept under standard conditions (12h light/dark cycles, 21 ± 2ºC, humidity 60 ± 10%, and air exhaustion cycle 15 min/h). Food and water were offered ad libitum, and the body mass was measured at the time of euthanasia. The average body mass was 433 ± 21.4 g for rats and 28 ± 1.6 g for mice.
For tissue collection, animals were submitted to six hours fasting and were deeply anesthetized with ketamine 100.0 mg/kg (Francotar®, Virbac, Brazil) and xylazine 10.0 mg/kg ip (Virbaxyl 2%®, Virbac, Brazil). The thoracic aorta was dissected, its proximal segment close to the aortic arc was immersed in Millong formalin (4% w/v in 0.1M phosphate buffer pH 7.2) for 48 hours, and then it followed the routine histological processing and embedding (Paraplast Plus, Sigma–Aldrich, St. Louis, MO, USA). Nonconsecutive sections were obtained to avoid counting the same structures (30 μm distance) and then stained with hematoxylin and eosin. Digital images of the PVAT were obtained using a Leica DM750 microscope (Wetzlar, German) coupled to a video camera Leica ICC50 HD (Wetzlar, German).

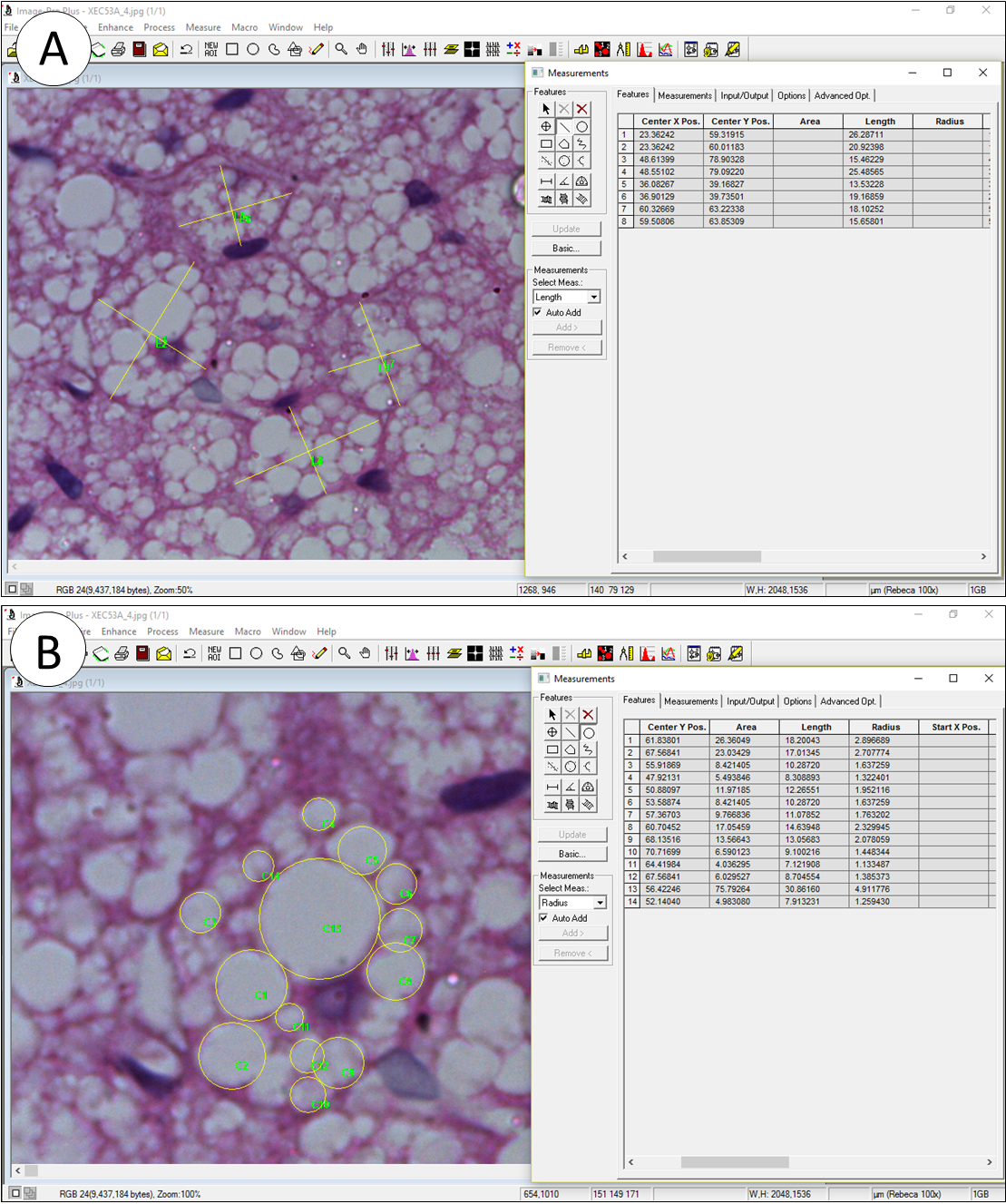

Morphometry was performed in the computer-based software Image Pro® Plus v. 5.0 (Media Cybernetics, Silver Spring, MD, USA), which allows the counting, measurement, and classification of objects. Ten nonconsecutive images of the PVAT were acquired per animal (image resolution 2,048 x 1,536 pixels .jpeg). Brown adipocytes have a polygonal shape, and thus we measured the largest and smallest diameter of 10 cells per image using the line feature, summing 200 measurements from 100 adipocytes (Figure 1a). Since lipid droplets have a spherical shape, we used the circle feature on Image-Pro Plus to measure their average diameter. Two random adipocytes per image had all their lipid droplets measured, and 20 adipocytes were analyzed (Figure 1b). Aorta wall was not evaluated in the present study since this methodology has been described elsewhere .

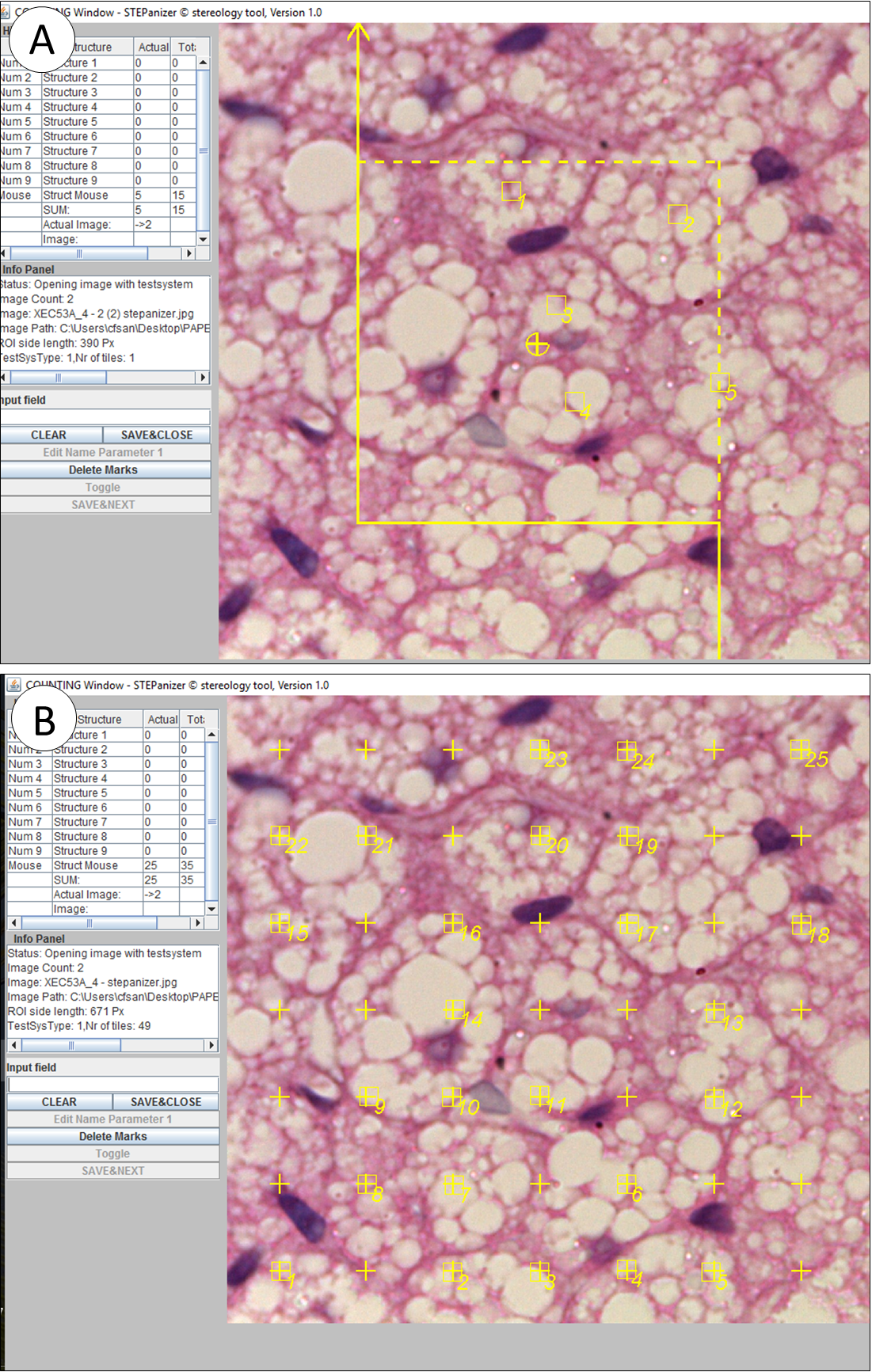

Stereology was performed in STEPanizer (http://www. stepanizer.com/), which is a free easy-to-use computerbased software tool for stereological assessment of digitally captured images . It creates test systems that are superimposed on digital images. Images can be scaled, and it has a counting module and an export function of data to spreadsheet programs. Monitor resolution was 768 x 1,024, and images used for stereology were the same used for morphometry. The number density (QA) of brown and paucilocular adipocytes was estimated in a test-frame of 2,966 μm2 and a guard area of 150 pixels width. All adipocytes inside the test-frame were considered but not the ones that hit the forbidden line or its extensions to avoid overestimation. The QA was calculated as the number of cells inside the test-frame divided by the test-frame area, expressed in mm2. Brown adipocytes were considered as the multilocular cells possessing lipid droplets of varied sizes and a central nucleus (when visible). Paucilocular adipocytes are cells with intermediate morphology between that of white and brown adipocytes, and they were considered as the multilocular cells possessing a single and pronounced central lipid droplet surrounded by small lipid droplets and a peripherical nucleus, when visible . White adipocytes were not present.
The volume density (VV) of lipid droplets was estimated by point counting in a 49-points test system and a guard area of 10 pixels width. The VV[lipid droplet] was estimated as PP[lipid droplet]/ PT, where PP is the number of points that hit lipid droplets and PT is the total test points, in this case, 49 (Figure 2b). In general, counting 100-200 points per study subject is considered as a sufficient count when the structure of interest is representative, and to do additional sampling and counting would be inefficient because biological variation cannot be altered by more sampling and counting [12-14]. In our experience, lipid droplets occupy about 1/3 to 1/4 of the tissue section, and considering that we analyzed ten sections, a total of 490 points were used to estimate VV[lipid droplets], which would be appropriate.
All measurements were performed by two blind observers (#1 and #2), that used the same set of images, and analyzed them using their computer, to assess the reproducibility of the method. Observer #1 had a previous experience performing morphological quantification of PVAT in Image-Pro Plus and STEPanizer software, but observer #2 had no previous experience about morphological tools and software for tissue quantification. Before quantifying, a third researcher (senior advisor) helped the two observers to perform system calibration and discussed with them how to identify, count, and measure the structures of interest.
Data are expressed as mean ± standard deviation, and it was tested for normality and homoscedasticity of variances. Rat and mice parameters obtained from the same observer were compared with the Mann-Whitney U test. This test was also used to compare a similar parameter obtained by observers #1 and #2. Bland-Altman graphs were created to assess the agreement between the two observers. The difference between observer #2 and #1 (Obs2 - Obs1) was plotted against the average of each parameter. The bias of one observer to the other is represented by the mean of the differences and the 95% limits of agreement (mean ± 2S.D.). Graph Pad® Prism v.6.0 (La Jolla, CA, USA) was used to perform all analysis, and a P<0.05 was considered statistically significant.
Table 1 shows the morphometric and stereological parameters obtained by observers #1 and #2 using the same set of images acquired from mice and rat PVAT. For morphometry, observers #1 and #2 found that brown adipocytes of rats are larger than mice (+26% P=0.0023, +18% P=0.0047, respectively). However, whereas observer #1 found lipid droplets larger in rats compared to mice (+16% P=0.0047), observer #2 found the opposite (-19% P=0.0012). This difference between observers seems to be related to the quantification of rat lipid droplet diameter since average mice lipid droplet diameter was similar between observers.
| || ||Observer #1||Observer #2||P|
|Animal Model||Parameter||Mean ± S.D.||CV (%)||Mean ± S.D.||CV (%)|| |
| C57BL/6 Mouse||Morphometry|
|Brown adipocyte, µm||16.1 ± 1.6||9.7||16.0 ± 1.3||8.2||NS|
|Lipid droplet#, µm||2.1 ± 0.1||4.8||2.1 ± 0.1||5.6||NS|
|Number density, QA|| || || || || |
|Brown adipocyte, 1/mm²||438.5 ± 56.9||13.0||442.8 ± 46.7||10.5||NS|
|Paucilocular adipocyte, 1/mm²||1.75 ± 3.0||171.8||2.23 ± 2.9||132.3||NS|
|Volume density, VV|
|Lipid droplet, %||25.8 ± 5.7||22.1||22.0 ± 6.5||29.5||NS|
| Albino Rat||Morphometry|
|Brown adipocyte, µm||20.3 ± 1.3**||6.5||19.0 ± 1.8**||9.5||NS|
|Lipid droplet#, µm||2.44 ± 0.4**||15.8||1.69 ± 0.1**||7.3||0.002|
|Number density, QA|| || || || || |
|Brown adipocyte, 1/mm²||333.2 ± 45.5*||13.7||341.0 ± 45.8**||13.4||NS|
|Paucilocular adipocyte, 1/mm²||20.6 ± 15.7**||76.3||14.5 ± 10.5*||72.5||NS|
|Volume density, VV|
|Lipid droplet, %||35.6 ± 6.4*||18.0||29.5 ± 8.4||28.4||NS|
# brown adipocytes only; * P< 0.05; ** P< 0.01; *** P< 0.001 rat vs. mouse from the same observer; P indicated in the last column refers to a difference between observers #1 and #2
Table 1: Comparison between observer #1 and observer #2.
For stereology, both observers detected a smaller number density of brown adipocytes in rats compared to mice (+24% P=0.0134, +23% P=0.0041, respectively), and the same is true for paucilocular adipocytes (+1,077% P=0.0052, +550% P=0.0256, respectively). Observer #1 showed a higher volume density of lipid droplets in rats (+38% P=0.035), but observer #2 found only a small trend with no significance. It is important to notice that the coefficient of variation is low for most parameters analyzed, but not for QA[paucilocular adipocytes] and VV[lipid
Overall morphological findings are summarized in Figure 3, where rats display larger brown adipocytes with larger lipid droplets compared to mice. Therefore, in rats, fewer cells are found per area (QA[brown adipocyte] rat < mice), and lipid droplets occupy a more significant volume within tissue section (VV[lipid droplets] rat > mice).
Inter-observer agreement and reproducibility

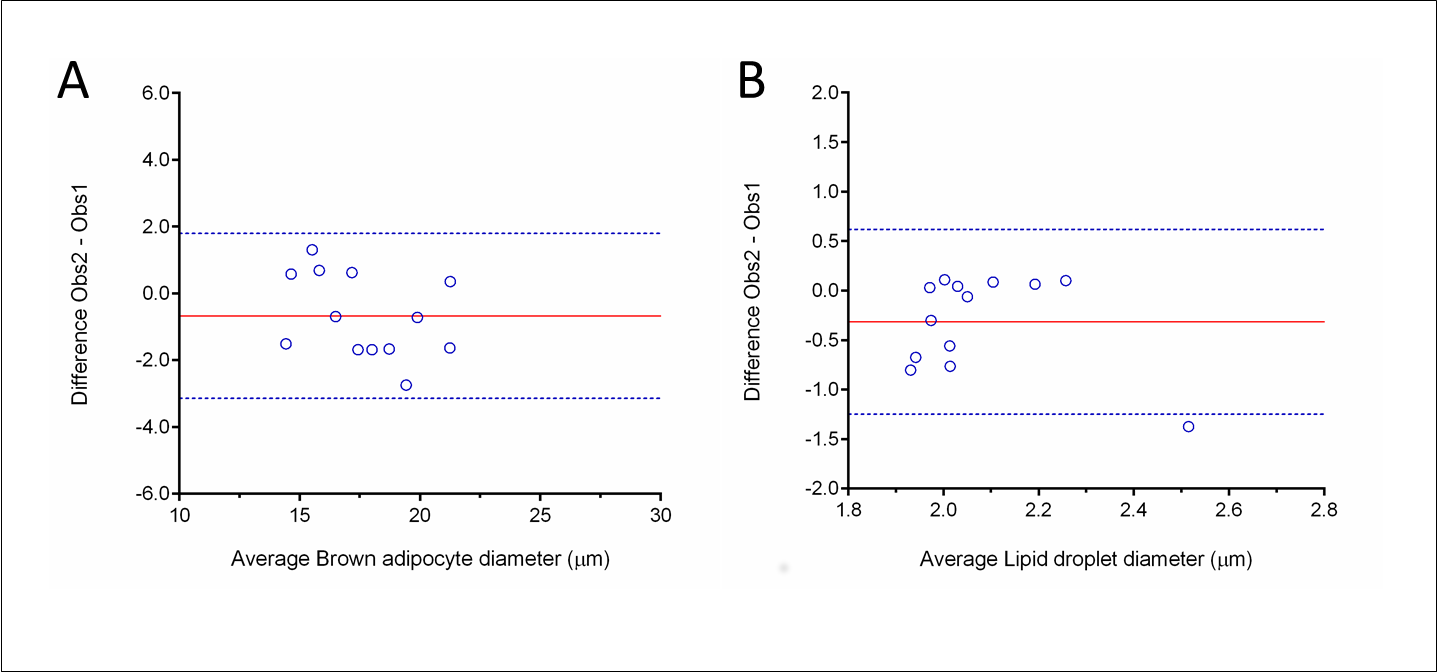

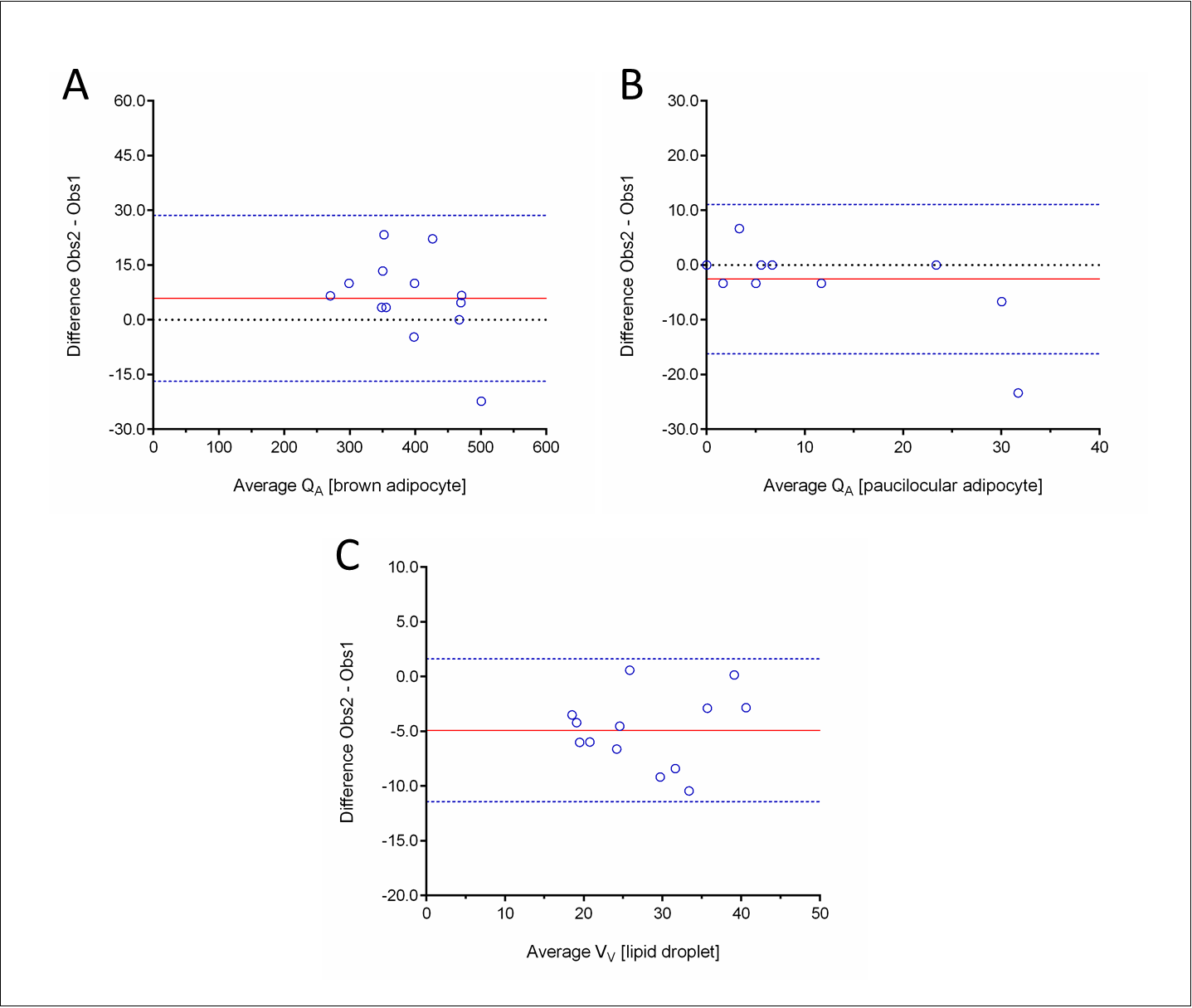

Bland-Altman test parameters are shown in Table 2. Curves in Figures 4 and 5 have plotted the average of mice plus rat parameters (x-axis) against the difference between observer #1 and #2 (y-axis). An overall analysis of the five curves shows that morphometric (Figure 4) and stereological (Figure 5) quantification agreed among observers. However, in Figure 4b, the data close to 0.0 regarding obs2-obs1 are from rats, whereas all mice data are negatives, which increases the bias and the 95% confidence interval. When analyzed independently, the average lipid droplet diameter bias (± S.D) for rats is 0.046 ± 0.06 and for mice -0.624 ± 0.46 (data not shown). Also, most of the positive data plotted in Figure 5a are from mice, and thus observer #2 found values bigger than observer #1 for the same animal.
|Parameter|| || ||Limits of agreement|
|Bias||SD Bias||Lower (CI)||Upper (CI)|
|Morphometry|| || || || |
|Brown adipocyte, µm||-0.6723||1.259||-3.140||1.795|
|Lipid droplet#, µm||-0.3152||0.476||-1.248||0.618|
|Number density, QA|| || || || |
|Brown adipocyte, 1/mm²||5.900||11.60||-16.84||28.64|
|Paucilocular adipocyte, 1/mm²||-2.566||6.968||-16.22||11.09|
|Volume density, VV|
|Lipid droplet, %||-4.908||3.329||-11.43||1.616|
CI, 95% confidence interval, # only from brown adipocytes
Table 2: Reproducibility between observers evaluated by the Bland-Altman test.
We provided some morphometric and stereological tools to allow the study of PVAT morphology in rodents. Morphometry is a quantitative method that can be used to determine lengths, perimeters, and areas of biological specimens in two-dimension. In contrast, stereology estimates volumes, surfaces, lengths, and numbers of structures in tissue sections that only provides twodimensional information, providing two-and threedimensional information. The methodology presented can detect morphological differences among the PVAT of albino Wistar rats and C57BL/6 mice, such as the average size of brown adipocytes and their lipid content. These parameters are fundamental since they can be used to understand PVAT remodeling in obesity by using animal models such as diet-induced obesity and genetic models of obesity. Assessing aorta and its PVAT remodeling, together with gene expression and functional approaches, will allow the understanding of mechanisms underlying arterial dysfunction in obesity. This integrated technique approach to exploit vascular biology will help to elucidate the onset and development of vascular dysfunction in obesity.
Morphometry and stereology are considered distinct quantitative methods. They possess several peculiarities, different purposes, and are executed by specific image analysis software. Despite their inherent methodological differences, the data generated have good reproducibility. These methodologies allow inter-group comparisons, and their theoretical background is well established and accepted. Of note, only a small training is required so that inexperienced researchers not habituated with the methodology can efficiently perform it . In the present study, morphometry and stereology data obtained by the two observers agreed, which ratifies that even inexperienced researchers can perform the methodology and obtain reproductive data.
Observers #1 and #2 did not have difficulty in executing the methodologies proposed, but observer #2 (inexperienced) reported some difficulty in identifying the lipid droplet boundary in the images provided. It might justify the interobserver difference found for rat lipid droplet diameter, and an absence of difference in the volume density of lipid droplets between rats and mice for observer #2. Digital images were obtained using the 100x objective of an optical microscope, which is the highest magnification possible in this system. An alternative to lipid droplet quantification might be the use of electron photomicrography since they provide higher magnification, allowing better visualization of tissue organelles and their boundaries. However, it is an expensive technique, and not all laboratories perform it as a routine. Despite this limitation, the Bland-Altman data reported agreement and reproducibility between observers.
The adipose tissue is considered an important endocrine organ. The white adipose tissue (WAT) has a role in energy storage, glucose and lipid metabolism, inflammation, and it is capable of rapidly increasing its size by adipocyte hypertrophy and hyperplasia. WAT depots are found surrounding internal organs (visceral fat) and under the skin (subcutaneous fat), and visceral fat expansion is associated with increased cardiovascular risk [15,16]. The brown adipose tissue (BAT) is responsible for adaptive thermogenesis, being consistently identified in adult humans in the cervical-supraclavicular, perirenal, adrenal, paravertebral, and surrounding large vessels as PVAT . In some individuals, brown adipocytes are also found within the WAT depot and are referred to as beige adipocytes [17,18]. Since brown adipocytes burn fat, several strategies are under investigation to increase the number and activity of beige cells as an attempt to induce weight loss, improve metabolism, and reduce cardiovascular risk [19-21].
White adipocytes are spherical cells with ~90% of their volume comprising a single cytoplasmic lipid droplet and a peripheric nucleus, whereas brown adipocytes are polygonal cells with a roundish nucleus and have several cytoplasmic lipid droplets [11,19,22]. The paucilocular adipocyte is considered as an intermediate step of whiteto- brown adipocyte transdifferentiation. Consequently, it presents an intermediate morphology between white and brown adipocytes, exhibiting a large vacuole surrounded by at least five small lipid droplets [11,23,24]. Paucilocular adipocytes are found in all adipose tissue deposits in humans and rodents . In our study, we noticed paucilocular adipocytes in rats and mice thoracic aorta PVAT, but not in all animals, and they were more often seen in rats compared to mice. The high coefficient of variance for QA[paucilocular adipocyte] indicates that the paucilocular adipocyte is not regular cell in the thoracic aorta PVAT of male albino Wistar rats and C57BL/6 mice. Thus, if the researcher has the aim to evaluate this subtype of adipocyte, more tissue sections are necessary to obtain an unbiased estimation of its numerical density.
In conclusion, the methodology proposed can quantify morphological aspects of the aorta PVAT in rodents. It is reproducible and can be performed by both expert and inexperienced researchers, once they know how to recognize the structures of interest to be measured.
