DSSCs are low-cost, eco-friendly solar cells offering a flexible alternative to silicon-based photovoltaics [1,2]. Photoanode plays a critical role in determining the efficiency of the device, with its performance influenced by light harvesting efficiency, electron injection, and recombination rates [2,3]. In n-type DSSCs, semiconducting oxides such as TiO₂ and ZnO are commonly used as photoanode materials. However, for p-type DSSCs, which operate via hole transport instead of electron transport, NiO nanotubes is one of the most promising candidates. NiO is a wide bandgap (3.5–4.0 eV) semiconductor that exhibits good chemical stability, resistance to photo corrosion, and excellent electronic properties [4–6]. It acts as an effective blocking layer, minimizing recombination losses, and also provides a suitable pathway for hole injection and transport. In recent years, significant research efforts have focused on improving the PCE of DSSCs through modifications in the photoanode material [7–9]. These modifications include incorporating carbon-based materials such as graphene quantum dots (GQDs) [10], reduced graphene oxide (RGO) [8], fullerenes (C₆₀) [7], and multi-walled carbon nanotubes (MWCNTs) [6], either as additives or as hybrid structures with metal oxides. These carbon allotropes offer several advantages due to their high surface area, electrical conductivity, chemical stability, and excellent optoelectronic properties. Their extended π- conjugation systems enable efficient charge transport, while their structural versatility allows for integration in various device architectures [10,11]. RGO is obtained by reducing of graphene oxide to enhance conductivity via restored sp² domains. GQDs, as 0D fragments, exhibit tunable optical and electronic properties due to quantum confinement. MWCNT offer high surface area, superior electrical conductivity, and mechanical strength, making them ideal for DSSC applications [6–8]. Carbon allotropes have been widely studied in n-type DSSCs, their integration with p-type systems, especially with NiO, remains relatively unexplored. While some studies have investigated binary composites like NiO-MWCNT [9], NiO-RGO [12], NiO GQD [13], and NiO-fullerene [7], a comprehensive comparative study combining NiO nanotubes with all these carbon allotropes in DSSC before this has not yet been reported. NiO@f-MWCNT, NiO@GQD, NiO@RGO, and NiO@fullerene, designed for p-type DSSC photoanodes [14]. These hybrids were synthesized and characterized for their structural, morphological, optical, and electrochemical properties. Here, NM hybrid showed superior performance, attributed to enhanced charge transport, reduced recombination, and improved light harvesting due to the synergistic interaction between NiO and the functionalized carbon nanotubes. To further explore the hybrid potential of NiO and f-MWCNT, we fabricated a novel ternary composite system NiO/f-MWCNT/TiO₂ for DSSC photoanodes. Initially, NiO nanotubes were synthesized using the sol-gel method. f-MWCNT interaction with NiO and TiO₂ matrices. Different photoanodes were prepared by varying the concentration of f-MWCNTs from 10% to 50% in the composite (NM10–NM50/TiO₂) [6]. This ternary system demonstrated significant improvement in photovoltaic performance. The bare TiO₂ based DSSC showed a PCE of 4.85%, while the optimized NM20/TiO₂ system achieved a PCE of 6.50%, indicating an approximate 34% enhancement. This improvement is attributed to the effective electron collection and transport facilitated by f-MWCNTs, combined with NiO’s blocking capability and TiO₂’s role as an electron acceptor. Overall, this study highlights the advantages of f-MWCNTs with NiO for enhancing the performance of p-type DSSCs i.e. NM nanocomposite. The successful integration of NM with TiO₂ further emphasizes the potential of such ternary systems in overcoming limitations of conventional photoanodes. These findings pave the way for future research into advanced hybrid structures for efficient, low-cost, and sustainable solar energy devices.

All chemicals were of analytical grade and used without further purification. Solvents were freshly distilled prior to use.

Chemicals and reagents

Nickel nitrate hexahydrate (Ni(NO₃)₂·6H₂O), dimethylglyoxime (DMG), multi-walled carbon nanotubes (MWCNTs, 98%, OD: 10–20 nm, length: 0.5–500 nm), graphene powder, fullerene (C₆₀), and meta-chloroperbenzoic acid (MCPBA) were procured from Sigma-Aldrich (USA). Nitric acid (HNO₃, 67%), sulfuric acid (H₂SO₄), sodium hydroxide (NaOH), phosphoric acid (H₃PO₄), dimethylformamide (DMF), potassium permanganate (KMnO₄), hydrogen peroxide (H₂O₂), hydrochloric acid (HCl), ethanol (C₂H₅OH), and citric acid were obtained from Fisher Scientific. N719 dye was purchased from TCI Chemicals and used as received. Fluorine-doped tin oxide (FTO) coated glass substrates (TCO22-15, sheet resistance: 15 Ω cm^-2) were sourced from Solaronix (Switzerland).

Synthesis of NiO Nanotubes

A 0.1 M ethanolic solution of DMG was added dropwise to a 0.1 M aqueous solution of Ni(NO₃)₂·6H₂O under continuous stirring at room temperature. The reaction mixture was stirred for 6 hours, resulting in a homogeneous solution. The precipitate was collected, washed with ethanol and distilled water, and dried at 80°C for 5 hours. Subsequently, it was calcinated at 450°C for 2 hours to obtain NiO nanotubes [15].

Functionalization of MWCNTs

1 g of MWCNTs was treated with a 3:1 mixture of concentrated H₂SO₄ and HNO₃. The mixture was sonicated for 30 minutes at room temperature and then refluxed at 60°C for 8 hours. Post-reaction, the mixture was neutralized, washed with distilled water, and dried in a vacuum oven at 100°C to yield f-MWCNTs [16].

Synthesis of RGO

RGO was synthesized using an improved Hummer’s method. Graphite flakes (3 g) and KMnO₄ (18 g) were added to a mixture of concentrated H₂SO₄ and H₃PO₄ (9:1, 360:40 mL). The reaction mixture was stirred at 50°C for 12 hours. After cooling to room temperature, it was poured onto ice containing 30% H₂O₂. The resultant mixture was filtered, and the filtrate was centrifuged at 4,000 rpm for 4 hours. The solid residue was washed sequentially with water, 30% HCl, and ethanol, then vacuum-dried overnight to obtain RGO [8].

Synthesis of GQDs

Citric acid (2.0 g) was heated in a 250 mL three-necked flask at 150°C until the solution turned orange-red, indicating pyrolysis. A 1.5 M NaOH solution was then added dropwise until the pH reached 7.0. The resulting solution was diluted to 100 mL and stored at 4 °C to obtain GQDs [17].

Functionalization of fullerene

MCPBA (4 g) was dissolved in 200 mL of benzene, followed by the addition of fullerene (120 mg). The mixture was refluxed at 60°C for 6 hours. After solvent evaporation at 80°C, a dark brown precipitate formed, which was washed with water and ethanol, then dried at 50°C to yield oxidized fullerene [18].

Synthesis of NiO carbon allotrope hybrids

For the synthesis of NiO-carbon allotropes hybrid, a stoichiometric ratio of 1:0.2 between nickel oxide (NiO) and carbon allotropes (including f-MWCNT, GQD, RGO, and fullerene for the respective NiO-f-MWCNT, NiO-GQD, NiO-RGO, NiO-fullerene nano-hybrids) was employed. The total mass of the materials was introduced into a 100 ml solution of DMF, and the mixture underwent ultrasonication for 10 minutes to ensure homogeneity. Following ultrasonication, the prepared mixture was subjected to reflux conditions for 12 hours at a temperature of 80°C. Subsequently, the reaction mixture was heated to 80°C to induce the evaporation of the solvent. The final product obtained was a dark grey-colored solid, representing the NiO-carbon allotropes hybrid [14].

NM nanocomposites,

NM composites were prepared by in-situ precipitation method. NiO:f-MWCNTs were taken in a ratio of 1:0.1, 1:0.2, 1:0.3, 1:0.4, and 1:0.5 respectively, and dispersed in 50 ml of isopropyl alcohol. After that, the dispersion was sonicated for 30 min to form a homogenous solution. The reaction was refluxed at 50°C for 5 h. After completion, the black precipitates were washed and filtered with distilled water. Subsequently, they were dried under vacuum at 80°C for 12 h. Finally, NM of 10%, 20%, 30%, 40%, and 50% nanocomposites were prepared and coded as NM10, NM20, NM30, NM40, and NM50 for device fabrication respectively [6].

Fabrication of DSSC

The nickel nitrate hexahydrate (0.8 M, 20 mL) precursor solution was prepared and stabilized with 2 drops of conc. Hydrochloric acid. The solution was stirred and heated at 40°C for 2 hours to get transparent solution. The precursor solution was spin coated on cleaned FTO glasses at 2,000 rpm for 60 sec. and then annealed at 450°C for 30 min. A thin film of prepared NiO and composites nano particles were prepared using doctor-blade method using Scotch tape as a spacer by forming NiO paste containing ethyl cellulose and α-terpinol. The prepared films were heated in the open furnace at 450°C for 30 min and soaked into dye solution (N719 dye, 10 mm) for 24 hours at room temperature. For ternary composite the on FTO TiO₂ nanoparticle (P25) mixed with NM composites layer spread followed by calcination at 450°C in open air. On the other hand, predrilled cleaned FTO glass electrodes were spin coated with H₂PtCl₆ (platinic acid) solution at 2,000 rpm and calcined at 450°C for 30 min. The dye soaked NiO electrodes were assembled face to face with Pt coated electrode using 25 μm thick thermoplastic (Surlyn, Dyesol). The liquid electrolyte, containing 0.5 M LiI, 0.05 M I2, 0.5 M TBP in 3-methoxy propionitrile was introduced through predrilled hole in Pt electrode, which was sealed afterwards using epoxy adhesive and cover glass. The fabricated devices were stored under the dark at room temperature for 12 hours prior to photovoltaic measurements. The active area of the DSSC devices was strictly maintained to 0.25 cm².

Characterization techniques

The prepared nanocomposites were characterized by different techniques to investigate the chemical and physical properties of the nanocomposites. Fourier transform infrared spectroscopy (FTIR) characterization was carried out to examine the structural determination of composites using Shimadzu IR affinity 1S Spectrophotometer in the range of 4000–400 cm^-1 on KBr pellet. Ultra-Violet Visible spectroscopy (UV–Vis) spectra of nanocomposites were recorded using a Hitachi U-2900 Spectrophotometer. X-ray diffraction powder (XRD) measurement of samples were per formed with a PAN Analytical Diffractometer model Imperial using CuKα radiation with a scanning speed of 10°/min and recorded in the 2Θ range of 10°–100°. Study of topography or surface morphology of nano composites were carried out by Scanning electron microscope (SEM, Carl Zeiss EVO 18) and Transmission electron microscopy (TEM) carried out using a JEOL (JEM-200 CX) (LEO-440) having accelerating voltage of 200 kV. The samples for TEM were prepared in isopropyl alcohol solvent. For the determination of surface chemical composition, an X-ray photoelectron spectrometer (XPS) with a radiation source of Al Kα (1486.7 eV) was used. The electrochemical impedance spectroscopic (EIS) measurements were carried out using Solartron 1,260 gain phase analyzer along with Solartron 1287 electrochemical interface by sweeping the frequency from 1.2 MHz to 0.1 Hz with an AC amplitude of 10 mV with 0 V applied bias. The NiO-based composites were sandwiched between two platinum electrodes. The Mott-Schottky analysis were performed using three-electrode system. NiO-based composite-coated FTO glass was used as working Platinum wire as counter and saturated calomel electrode as reference electrode were taken with 0.1 N KCl as electrolyte. The slope and acceptor density values were calculated using our previous report [19]. The photovoltaic measurements (J-V) were performed using CHI660E electrochemical workstation (CH instruments, USA under the light illumination (Solar simulator, SS80 AAA, Photoemission Tech, USA) with light intensity of 100 mW cm² with AM 1.5 G. The open-circuit voltage decay (OCVD) spectra were measured using CHI660E upto 200 s after light cut off. The electro chemical impedance spectroscopy (EIS) measurements were measured by sweeping the frequency from 1.2 MHz to 0.1 Hz with an AC amplitude of 10 mV with − 0.65 V applied bias using Solartron 1260 gain phase analyzer along with Solartron 1287 electrochemical interface under dark conditions. The incident photon to-current conversion efficiency (IPCE) of the devices was measured using IPCE system (Oriel IQE-200, Newport, USA) with 250 W quartz tungsten halogen (QTH) lamp as the light source.

Structural properties

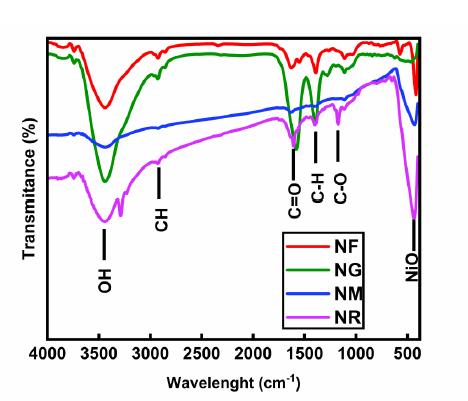

FTIR spectroscopy: Figure 1 presents the FTIR spectra of the NM, NG, NR, and NF nanohybrids, revealing characteristic functional groups. For NM, peaks at 3,443 cm^-1 and 1,747 cm^-1 correspond to – OH and C=O stretching vibrations, respectively, while a band at 435 cm^-1 indicates NiO [6,20]. The presence of asymmetric and symmetric C–H vibrations at defect sites of acid-treated MWCNTs further confirms methylene groups. In the NG nanohybrid, peaks at 3,438 cm^-1 (– OH), 1,741 cm^-1 (C=O), and 492 cm^-1 (NiO) are observed, along with bands at 1,587, 1,386, and 1,109 cm^-1 attributed to C=C, C–H, and C–O, respectively. Additional peaks at 2,921 and 2,850 cm^-1 correspond to asymmetric and symmetric C–H stretching. The NR spectrum exhibits prominent peaks at 3,438 (–OH), 2,922 (–CH), 1,760 (C=O), 1,616 (C=C), 1,109 (C–O), and 440 cm^-1 (NiO) [15]. For NF, the bands at 3,438, 2,922, and 2,854 cm^-1 represent –OH and C–H stretching, while peaks at 1,750, 1,545, 1,382, 1,114, and 421 cm^-1 are assigned to C=O, C=C, C–H, C–O, and NiO vibrations, respectively.

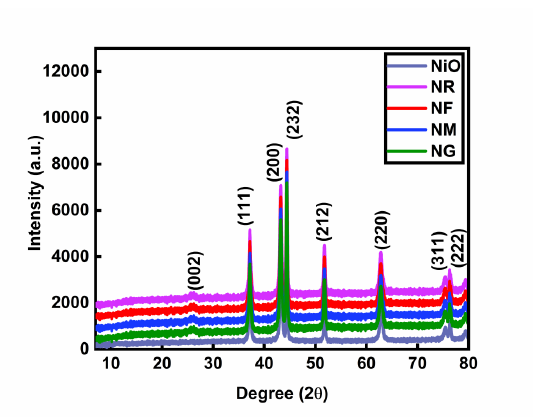

X-ray diffraction (XRD): XRD analysis (Figure 2) confirms the crystalline nature and phase purity of all NiO and NiO- based nanohybrids (NM, NG, NR, and NF). Distinct diffraction peaks at 25.75° correspond to the (002) plane of carbon materials [12,16], while peaks at 37.1°, 44.32°, 51.7°, 63.10°, 76.20°, and 79.52° are indexed to the (111), (200), (212), (220), (311), and (222) planes of cubic NiO, respectively [15]. In case of nano hybrids both carbon and NiO peaks present which verifies successful formation of NiO-carbon nanohybrids.

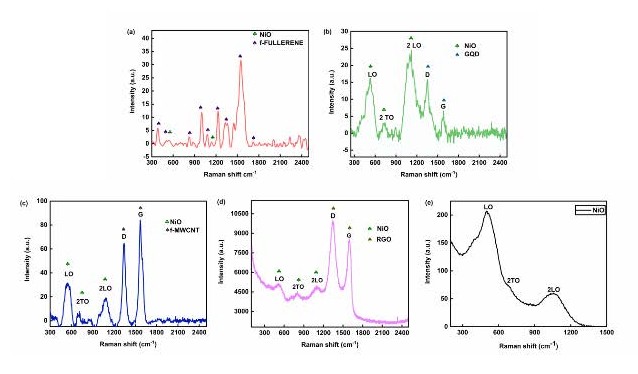

Raman spectroscopy: Raman spectra (Figure 3) exhibit characteristic D (~1,350 cm^-1) and G (~1,580 cm^-1) bands of carbon allotropes in all hybrids (NM, NG, NR, and NF), indicating structural defects and graphitic domains [8]. NiO-specific modes at 545, 780, and 1,094 cm^-1 correspond to LO, 2TO, and 2LO phonon vibrations, respectively [15,19,21]. These combined signals confirm the coexistence of NiO and carbon phases in the nanohybrids.

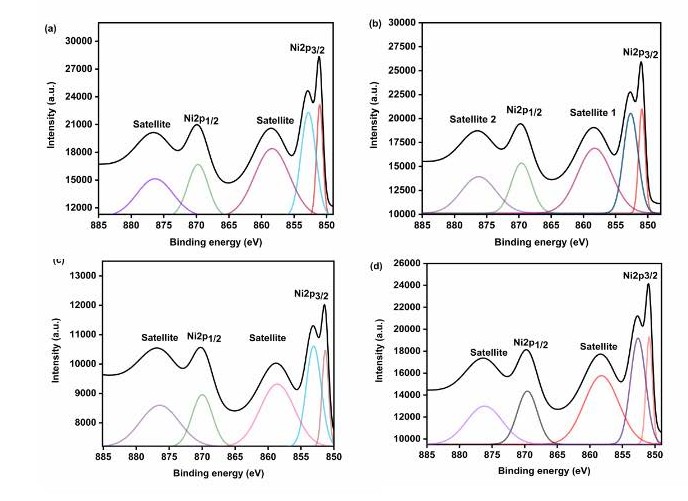

X-ray photoelectron spectroscopy (XPS): The elemental composition and oxidation states of the NF, NG, NM, and NR nanohybrids were investigated using X-ray photoelectron spectroscopy (XPS). The XPS results confirmed a similar elemental profile across all the nanohybrids. Figures 4a–4d shows the Ni 2p spectra, where distinct peaks at 851.1 and 852.8 eV correspond to the Ni 2p₃/₂ region, confirming the presence of Ni²⁺ species. A peak observed at 869.7 eV is assigned to the Ni 2p₁/₂ spin–orbit level, further validating the existence of NiO. Additionally, two prominent satellite peaks at 858.8 and 876.4 eV are characteristic of Ni²⁺ and serve as conclusive evidence for the formation of NiO shells in all nanohybrids [21].

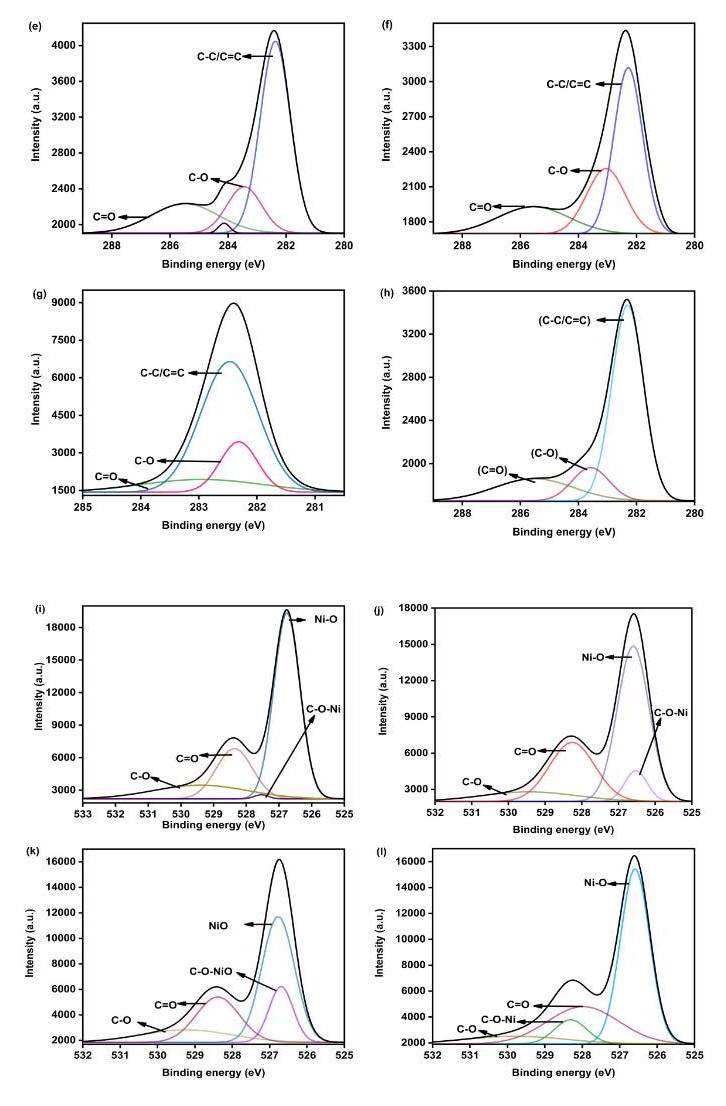

The deconvoluted C 1s spectra, displayed in (Figures 6e–6h), highlight the presence of various oxygen-containing functional groups. A dominant peak at 282.30 eV corresponds to non-oxygenated, sp²-hybridized carbon (C=C/C−C), which is typical of carbon allotropes. Additional peaks at 283.45 eV and 285.50 eV are assigned to C−O and C=O bonds, respectively, indicating surface oxygen functionalities present on the carbonaceous components [16,19,21]. (Figures 4i–4l) presents the O 1s spectra for all nanohybrids. A strong peak at 526.7 eV is attributed to lattice oxygen (O^2-) in NiO. Peaks at 528.7 and 529.5 eV correspond to oxygen atoms involved in C=O and C−O bonding, respectively. The appearance of an additional peak at 527.5 eV after the integration of NiO suggests the formation of C−O−Ni linkages. Finally, (Figure 4m) provides the survey spectra of the nanohybrids, clearly showing the presence of nickel, oxygen, and carbon. These results collectively confirm the successful formation of NiO-based carbon nanohybrids with chemically bonded components.

Transmission electron microscopy (TEM): In Figure 5a, the NiO sample exhibits a well-defined nanotubular morphology with an average diameter of approximately 0.15 µm. Minor agglomerations are observed, likely due to residual impurities or incomplete dispersion. Figure 5b displays elongated, noodle-like structures characteristic of f-MWCNTs, with diameters ranging from 15 to 30 nm. Figure 5c reveals thin, wrinkled sheet-like structures of RGO, where the fringed edges confirm the exfoliated and layered morphology typical of RGO. Figure 5d shows uniformly distributed nanoparticles with spherical morphology, resembling fullerene-like structures. Finally, in Figure 5e, the GQDs appear as well-dispersed, nanoscale spherical entities, indicating successful synthesis with minimal aggregation.

Scanning electron microscopy (SEM): SEM was employed to examine the surface morphology and structural features of the synthesized materials. As depicted in Figure 6a, the NiO sample exhibits a well-defined nanotubular morphology, confirming the successful formation of tubular structures. The f-MWCNT in Figure 6b reveals a characteristic noodle-like morphology, typical of functionalized multi-walled carbon nanotubes, which are well-integrated with NiO nanoparticles. Figure 6c illustrates, reduced graphene oxide exhibits an irregular, folded, and wrinkled sheet-like morphology. This structural deformation contributes to increased surface area and disorder, which can enhance charge transport properties in device applications. Figure 6d shows the fullerene, where the fullerene-based nanoparticles appear to adopt an elongated, rod-like morphology, suggesting possible aggregation or alignment during synthesis. Lastly, in Figure 6e, in the GQDs are observed as ultra-fine, uniformly distributed nanostructures with a rice-grain-like appearance, indicative of nanoscale dimensions and good dispersion.

Photovoltaic performance and electrochemical impedance spectroscopy (EIS)

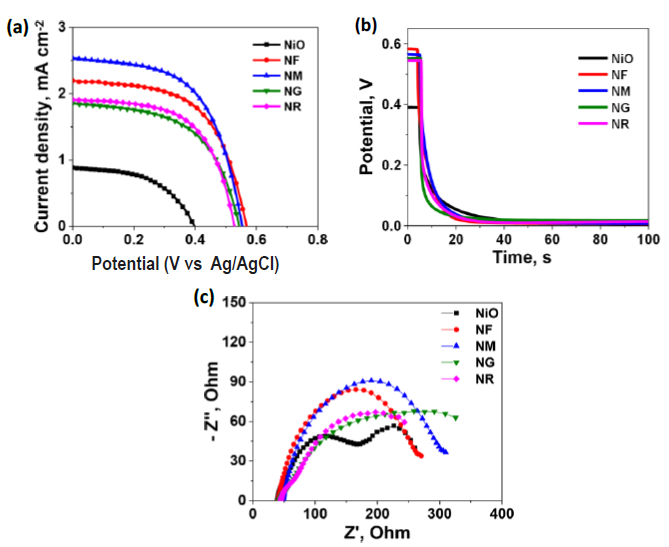

To assess the photovoltaic behavior of the synthesized NiO-based nanohybrids, DSSCs were fabricated using N719 dye as the sensitizer. Devices incorporating four distinct nanohybrids NF, NG, NM, and NR were systematically compared to a reference device based on pristine NiO. All devices employed a standard liquid-state electrolyte. The J–V characteristics under AM 1.5 illumination are shown in (Figure 7a), and the photovoltaic parameters including Jsc, Voc, fill factor FF, and PCE are compiled in (Table 1).

The reference DSSC based on bare NiO exhibited poor performance, delivering only 0.17% efficiency with a low (short circuit current density) Jsc of 0.88 mA cm^-2, (open circuit voltage) Voc of 0.43 V, and (fill factor) FF of 51.86%. In contrast, the nanohybrid-based devices demonstrated significant performance enhancements owing to the incorporation of carbon allotropes, which tune the electronic properties of NiO and improve its charge transport capabilities. Among these, the NM device exhibited the highest PCE of 0.80%, with a Jsc of 2.53 mA cm^-2, Voc of 0.56 V, and FF of 56.46%, followed by NF (0.72%), NR (0.60%), and NM (0.55%).

The observed improvements are primarily due to the synergistic interaction between NiO and the incorporated sp²-hybridized carbon nanostructures. These allotropes offer enhanced electrical conductivity, accelerated electron transport, and reduced recombination losses by providing efficient charge migration pathways. Additionally, they raise the quasi-Fermi level of NiO, leading to increased Voc values. The increased surface area and the presence of additional active sites also promote superior dye loading and more efficient electron injection.

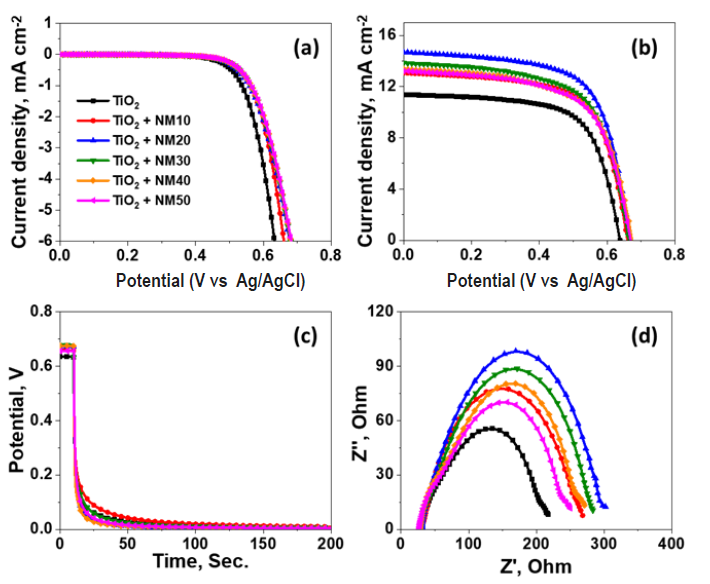

In particular, NM nanohybrid devices benefited from the high surface area of f-MWCNTs, forming a conductive network that facilitated rapid electron migration and higher dye adsorption. The performance of the NM-based DSSCs was further investigated by incorporating varying concentrations (10–50 wt%) of NM composite with TiO₂ as the base photoanode. The corresponding J–V profiles are shown in Figure 7b, and photovoltaic parameters are listed in Table 2.

While the bare TiO₂ device delivered a modest PCE of 4.85% (Jsc=11.35 mA cm^-2, Voc=0.63 V, FF=67.82%), significant improvements were observed with the addition of NM. The highest PCE of 6.50% was achieved with 20 wt% NM, along with a Jsc of 14.67 mA cm^-2, Voc of 0.67 V, and FF of 67.13%. Devices with 10%, 30%, 40%, and 50% NM showed PCEs of 5.72%, 5.88%, 5.62%, and 5.60%, respectively. The initial improvement is attributed to the optimized distribution of f-MWCNTs that promote fast electron transfer, suppress recombination, and increase dye adsorption. However, at higher concentrations (>20%), aggregation of f-MWCNTs likely hindered electron mobility and promoted recombination, leading to a slight decline in performance. These results highlight the importance of optimizing the NM content to balance charge transport and material dispersion.

To evaluate the stability of the devices, open-circuit voltage decay (OCVD) measurements were performed (Figure 7c and Figure 8c). Upon cessation of light exposure, a rapid decline in Voc followed by stabilization at low values was observed. This behavior indicates minimal back-electron transfer in the dark and confirms the favorable stability of the DSSCs.

To further probe internal charge transfer dynamics, EIS was conducted under dark conditions at 0.6 V bias (Figures 7c and 8d). The Nyquist plots exhibited two prominent semicircles: the high-frequency arc corresponds to the charge transfer resistance (Rct) at the counter electrode/electrolyte interface while the mid- to low-frequency arc is assigned to the recombination resistance (Rrec) at the photoanode/electrolyte interface. An additional minor tail at low frequency represents Warburg impedance arising from ion diffusion in the electrolyte.

The EIS data in (Table 1 and 2) reveal that the reference TiO₂ device exhibited the lowest Rrec, implying high charge recombination and thus low photocurrent. In contrast, NM-based devices showed significantly higher Rrec values, particularly for the 20% NM composite, indicating suppressed recombination and efficient electron transport. The increased Rrec directly correlates with the high Jsc values observed. Lower Rct values in these devices also suggest better contact at the counter electrode/electrolyte interface.

In summary, the incorporation of NM nanocomposites into NiO and TiO₂ photoanodes markedly enhances the photovoltaic performance of DSSCs. These improvements stem from optimized electron transport, minimized recombination, increased dye adsorption, and favourable interfacial properties. Among all configurations, the 20% NM composite exhibited the best overall performance, validating its potential as a high-efficiency photoanode material for next-generation DSSCs.

The integration of carbon nanostructures with NiO nanotubes offers a compelling strategy for improving the efficiency of p-type DSSCs. This study systematically compared the performance of NiO hybrids with four different carbon allotropes f-MWCNTs, GQDs, RGO, and fullerenes revealing that NM exhibited the highest enhancement in photovoltaic parameters such as PCE, Jsc and FF 0.80%, 2.53 mA/cm² and 56.46% due to its superior charge transport and interfacial properties. Expanding on this, a ternary NiO/f-MWCNT/TiO₂ system was developed, demonstrating a significant improvement in power conversion efficiency PCE, Jsc 6.50%, 14.67. The incorporation of TiO₂ enabled better electron transport, while f-MWCNTs provided conductive pathways and facilitated efficient charge separation. These findings confirm that rational design of hybrid photoanodes combining p-type semiconductors with carbon nanomaterials and electron-conductive oxides can effectively address existing limitations in DSSC performance. This work not only contributes to the understanding of material interactions in hybrid photoanodes but also opens new avenues for the design of next-generation solar energy devices.
