Supercapacitors have attracted considerable interest for the fabrication of next-generation energy storage devices because of their high power density, long cyclic life, good safety features, fast charging-discharging processes, and eco-friendly nature [1-5]. Depending on the energy-storage mechanism, there are two types of supercapacitors: electrical double-layer capacitors (EDLCs) and pseudocapacitors. In the former, energy is stored mainly by the virtue of separation of electronic and ionic charges at the interface between the electrode materials and electrolyte solution. In the latter, fast faradaic reactions occur at the electrode materials [6]. Hence, pseudocapacitors should ideally store a higher amount of charge than their EDLC counterparts [7].

Electrode materials with high electrical conductivities, such as carbon black, carbon nanotubes, and carbon fibers [8-11], are generally used as electronic conductors. The supercapacitive behavior of several transition metal oxides, such as RuO₂ [12,13], IrO₂ [14], and NiOx [15], has been extensively studied. Among these, hydrous ruthenium oxide (RuO₂·xH₂O) has been recognized as one of the most promising candidates for active electrode materials because it can store charge by reversibly accepting and donating protons from an aqueous electrolyte. This process is governed by the potential-dependent equilibrium given in Eq. (1) [16,17]:

RuOx(OH)y + δH+ + δe− → RuOx−δ(OH)y+δ      (1)

As a result of charge infusion, the oxidation state of Ru for the Ru⁴⁺/Ru³⁺ couple is expected to change among +4 (Ru⁴⁺), +3 (Ru³⁺), and +2 (Ru²⁺), as expressed in Eq. (2).

Ru⁴⁺ - O + H⁺ + e^- ® Ru³⁺ - OH (2)                           (2)

Eqs. (1) and (2) imply that RuO₂·xH2O is an ionic compound with protons inserted into its lattice. RuO₂·xH₂O is also a metallic conductor. Cyclic voltammetry (CV) shows a nearly constant current vs. applied voltage and weak evidences of distinct charge couples, implying that electrons are fully or partially delocalized and that there are no discrete ions [18]. Therefore, hydrous RuO₂ can behave as a mixed electronic-protonic conductor [19,20]. Its electrochemical properties depend on the amount of water incorporated in its structure, and optimum charge storage (pseudocapacitance) is achieved when RuO₂·xH₂O is heated at ~150°C to yield a compound with x ≈ 0.5 [21-24].

A review of previous reports indicated that relatively high specific capacitances were obtained particularly when a small amount of RuO₂ was uniformly dispersed on carbonaceous materials with very high surface areas [25,26]. Therefore, highly electroactive transition metal oxide-decorated electrochemically conductive carbonaceous substrates with high specific surface areas are considered promising candidates for improving the capacitive performance of electrode materials. Considerable research has been devoted to achieve enhanced capacitance using multi-walled carbon nanotubes (MWCNTs) functionalized with RuO₂ [27,28].

In this study, we report the pseudocapacitive behavior of oxidized MWCNTs functionalized with hydrous RuO₂ in 1 M sulfuric acid (H₂SO₄) for application in supercapacitors. Our functionalization approach provides an easy way to improve the capacitance of MWCNT with hydrous RuO₂, which is very useful for realizing carbon nanotube-based energy storage materials in the near future. The resulting RuO₂/MWCNT composites were characterized by X-ray diffraction (XRD), TEM with EDX spectroscopy, and particle size distribution (PSD). The electrochemical behavior of the composite electrodes was tested using CV and electrochemical impedance spectroscopy (EIS).

The MWCNTs (purity: > 95%, length: 5–20 μm, diameter: 8–15 nm) used in this work were obtained from Nano Solution Chem. Co., Korea. The details of MWCNT preparation have been discussed elsewhere [29]. RuCl₃·xH2O (40~49% Ru content, £ 0.1% insoluble matter) used in this work was purchased from Sigma-Aldrich. All other chemicals were purchased from Chemical Reagent Co., Ltd. and used as received. As reported earlier [30], for preparing oxidized MWCNTs, the MWCNTs were refluxed with 6 M HNO₃ at 120°C for 3 h to remove metal catalyst impurities and generate oxygenated functional groups on their surface. The oxidized MWCNTs were thoroughly washed with double-distilled water and dried in an oven at 110°C. The oxidized MWCNTs were dispersed in a mixture of isopropanol and water (1:1 volume) by ultrasonic agitation. Then, 5–10 wt.% RuCl₃·2H₂O was added to the mixture, which was further ultrasonicated for 1 h. The resultant RuO₂/MWCNTs were filtered and washed thoroughly with doubled distilled water to remove excess chloride ions, and then dried in an oven at 110°C. Finally, the 5 and 10 wt% RuO₂/MWCNT samples were annealed at 150°C under a nitrogen atmosphere. The samples (3 mg) were dispersed in 10 mL of N,N-dimethylformamide under ultrasonic agitation. A drop of the mixture was placed on the polished surface of the glassy carbon electrode and dried in an oven at 110°C to evaporate the solvent. A similar procedure was used to prepare the pristine MWCNT electrodes.

XRD measurements were performed on a Rigaku Model D/Max-III B instrument operating at 40 keV and 40 mA using CuK_a radiation. The surface morphologies of the pristine MWCNTs and RuO₂/MWCNT composites were characterized by high-resolution TEM (HR-TEM; JEOL model 2010 TEM using 100 keV beam energy) and EDX spectroscopy (AN-10000/85S EDX spectrometer). Before acquiring the electron micrographs, the samples were ultrasonically dispersed in ethyl alcohol, following which a drop of the resultant dispersion was deposited and dried on a lacey carbon film suspended on a copper grid.

Electrochemical properties of the fabricated electrodes were analyzed in 1 M H₂SO₄ electrolyte using a conventional three-electrode system composed of the prepared RuO₂/MWCNT composite electrode as the working electrode, Ag/AgCl (saturated KCl solution) as the reference electrode, and platinum wire as the counter electrode. Electrochemical measurements were performed using an electrochemical analyzer system (Autolab PGSTAT 30 cyclic voltammetry equipment). The specific gravimetric capacitance, Cg (F/g), was calculated from the gravimetric discharge process according to relation Cg = iΔt_d/ΔV, where i is the constant discharge current density (A/g), Δt_d is the discharging time (measured from 0 to 0.9 V), and ΔV is the potential change apart from the ohmic drop. Electrochemical impedance measurements were carried out for both pristine MWCNTs and RuO₂/MWCNT composite samples by applying an AC signal of 10 mV amplitude over a frequency range of 10 mHz–40 kHz.

Structural and morphological properties

Because RuO₂ usually exists as hydrates, the precise loading of RuO₂ must be identified on a wet basis. Thus, the loaded amounts of RuO₂ were calculated by considering the weight loss of water measured by thermal analysis, as shown in Table 1. Pristine MWCNTs have a specific surface area of 240 m²/g [29]. As expected, the specific surface area of the RuO₂/MWCNT composites decreases with increasing Ru content. This was attributed to the pore-blocking effect and particle aggregation on the surface of the MWCNTs. In addition, when MWCNTs are used as a support, the effective utility of Ru can be as high as 95% or 96% at high loadings of approximately 4.8% or 9.7%, respectively, which is beneficial for preparing high-loading electrode materials.

* Utility ratio: effective utility of noble metal Ru

Table 1: Loaded amounts of RuO₂ and effective utility ratio of Ru on MWCNTs.

Figure 1 shows the XRD patterns of the pristine MWCNTs and 5–10 wt% RuO₂/MWCNT composites. The peaks at 26.3°, 43.75°, and 54.70° can be assigned to the (0 0 2), (1 0 0), and (0 0 4) planes of carbon [31,32], respectively, in good agreement with that of the previous literature [33,34]. There is a weak peak from metallic Ru at 38 and no identification of any crystalline phase of RuO₂ in the composites. Moreover, the heights of the (0 0 2) and (1 0 0) peaks are proportional to crystallites sizes L_c (@2.5 nm) and L_a (@13.6 nm), respectively [35,36]. However, no Ru peak could be observed, suggesting an amorphous morphology. XRD analysis indicated the reduction of Ru ions in the first stage of the chemical reduction process to crystalline Ru particles and hydrous RuO₂. The redox reaction of RuO₂ dominated the electrochemical reaction when sufficient number of RuO₂ nanoparticles were nucleated by annealing. These results are consistent with the linear sweep voltammetry (LSV) curves, which show oxidation peak currents at 1.0 and 1.2 V, and reduction peak current at −0.35 V. Thus, the following redox reactions can be considered to occur:

Ru₂O₃ + H₂O ® 2RuO₂ + 2H⁺ + 2e^- E⁰ = 0.878 V

Ru³⁺ + e^- ® Ru²⁺ E⁰ = 0.878 V, and

Ru²⁺ + 2H₂O ® RuO_2•H₂O + 4H⁺ + 2e^- E⁰ = 0.878 V

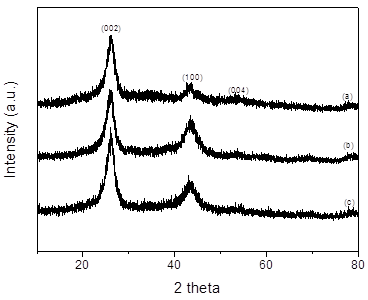

Figure 1. XRD spectra of (a) pristine MWCNTs, (b) 5 wt% RuO₂/MWCNT composite, and (c) 10 wt% RuO₂/MWCNT composite.

TEM images, particle size distribution, and EDX analysis of pristine MWCNTs and the 10 wt% RuO₂/MWCNT composite are shown in Figure 2. TEM images indicated that RuO₂ nanoparticles were highly dispersed and well anchored on the surfaces of the MWCNTs, forming a randomly entangled network compared to that in the pristine MWCNTs. The TEM image (Figure 2b) reveals that the MWCNTs were covered by RuO₂ nanoparticles. No separate aggregation of the RuO₂ nanoparticles was observed, indicating that nucleation was effectively limited to the surface of the MWCNTs. Figure 2c clearly shows MWCNTs with conical herringbone structures. Most of the nanoparticles were settled on the external surface of the herringbone-structured MWCNTs. However, some nanoparticles tend to enter the cavities of the nanotubes from the open ends because of the smaller sizes compared to the inner diameter of the MWCNTs and the low surface tension of water. The HRTEM image (Figure 2c) also reveals that the RuO₂ nanoparticles do not have a distinct crystal structure. This indicates that the RuO₂ nanoparticles are in an amorphous state, which is in good agreement with the XRD patterns shown in Figure 1. Meanwhile, the crystal structure of the MWCNTs remained unchanged, indicating that the deposition of RuO₂ did not affect the crystallinity of the MWCNTs. The size distribution of the supported RuO₂ nanoparticles was evaluated from the statistical measurements of 500 randomly selected particles (Figure 2d). These particle sizes are in the range of 0.8–3 nm, with an average size of ~1.6 nm.

Figure 2. TEM and PSD of pristine MWCNTs and 10 wt% RuO₂/MWCNT composites: (a) pristine MWCNTs, (b) low magnification, (c) high magnification, and (d) particle size distribution.

The 10 wt% RuO₂/MWCNT composite was further characterized using EDX to examine the chemical composition. The EDX spectrum (Figure 3) shows that the 10 wt% RuO₂/MWCNT composite is composed of Ru, O, and C. The Cu peak was attributed to the Cu microgrid on which the product was loaded. Based on the electron microscopy analysis, it is reasonable to conclude that the RuO₂ nanoparticles are well anchored on the surfaces of the MWCNTs, yielding carbon nanocomposites that can be applied to supercapacitors.

Figure 3. EDX spectrum of the 10 wt% RuO₂/MWCNT composite.

Electrochemical properties

CV curves were acquired at a scan rate of 50 mV/s to investigate the influence of RuO₂ deposition on the capacitance of the fabricated composite electrodes. Figure 4 displays the CV curves of the pristine MWCNTs and 5–10 wt% RuO₂/MWCNT composite electrodes in 1 M H₂SO₄. The peaks at 0.08 V (anodic) and 0.13 V (cathodic) vs. Ag/AgCl are associated with oxygen-containing surface functionalities such as carboxylic acids on the surfaces of the MWCNTs. Another redox pair is observed at 0.52 and 0.58 V for anodic and cathodic potentials vs. Ag/AgCl, respectively. All these peaks indicate the presence of oxygenated functional groups, as they exhibit pH-dependent behavior. These peaks are attributed to oxygenated surface functionalities such as quinones and functional groups that show peaks similar to those of glassy carbon electrodes [37,38].

Figure 4. CV curves of (a) pristine MWCNTs, (b) 5 wt% RuO₂/MWCNT composite, and (c) 10 wt% RuO₂/MWCNT composite in 1 M H₂SO₄ (scan rate: 50 mV/s).

The cathodic peak shifted negatively with increasing RuO₂ content, whereas the anodic peak shifted positively. This may be due to the high packing density of the MWCNTs, which is considerably smaller than the thickness of the diffusion layer of the electrolyte, thus leading to semi-infinite planar diffusion that is similar to the case of planar macroelectrodes. The specific capacitance essentially depends on the microtexture of the nanotubes, number of defects, micropore volume, and catalyst contamination. The accumulation of charges in the electrode-electrolyte interface mainly depends on the accessibility of electrolyte ions to the sidewalls and the central core of the nanotubes. Open tips, number of defects, and presence of an interconnected network can also result in enhanced capacitance. The gravimetric capacitance of the 10 wt% RuO₂/MWCNT composite is 130 F/g in the linear region of the voltammogram, where the MWCNTs show an ideal double-layer capacitive behavior.

Electrochemical impedance was investigated to characterize the capacitive performance. Figure 5 shows the complex plane plots of the impedance of the 10 wt% RuO₂/MWCNT composite in 1 M H₂SO₄. Impedance spectroscopy is a valuable tool not only for determining the equivalent series resistance but also for studying the interfacial and pseudocapacitance behaviors of the electrode. In this technique, an alternating voltage is applied to the electrode interface; the response is represented by an imaginary component, Z′′, of the impedance, which is the capacitance of the electrode given by the equation Z′′ = 1/jωC. The internal impedance involves two mechanisms, including the resistances of mass transport and the electrode materials [39]. In our experiment, the mass-transport resistance of the electrolyte was almost constant. This value represents the performance of the electrode materials.

Figure 5. Complex plane impedance plots of pristine MWCNT (red) and 10 wt% RuO₂/MWCNT composite (blue) in 1 M H₂SO₄.

The impedance plots can be divided into high- and low-frequency regions, as shown in Figure 5. The frequency at which there is deviation from the semicircle is known as the ‘knee’ frequency, and it reflects the maximum frequency at which the capacitive behavior is dominant. The larger semicircle in the high-frequency region for the RuO₂/MWCNTs suggests the existence of charge transfer resistance (R_CT). MWCNTs [40] exhibit a small semicircle in the high-frequency region, whereas a straight line inclined at more than 45° to the real axis can be observed in the low-frequency region. This behavior can be attributed to the porous nature of the MWCNTs. The central hollow core of the nanotubes is accessible for double-layer charging, and thus the open MWCNTs act as a condenser for the accumulation of charges. Deviations from this behavior were observed for the 10 wt% RuO₂/MWCNT composite, as indicated by the large semicircle. This was due to the presence of RuO₂ on the MWCNTs, which offered resistance to the diffusion of electrolyte ions within the pores of the nanotubes. Although the model-dependent capacitance obtained from the impedance spectrum is considerably lower than the capacitance obtained from the voltammetric data, enhancement of the capacitance by an order of magnitude suggests a positive role of the Ru species introduced on the MWCNTs.

The inherent electrochemical capacitance of the RuO₂/MWCNT composite electrodes was significantly enhanced upon functionalization by hydrous RuO₂. Oxidative treatment of the MWCNTs generated oxygen-containing functional groups at the defective sites, which could be further derivatized by hydrous RuO₂. Owing to its pseudocapacitive behavior, RuO₂ significantly increased the capacitance of the RuO₂/MWCNT composite electrodes. Furthermore, a higher RuO₂ content resulted in an increased specific capacitance that was derived from the pseudocapacitance of RuO₂. Notably, the 10 wt% RuO₂/MWCNT composite electrodes showed the highest specific capacitance, largely due to an increase in the equivalent series resistance and overall capacitance.

This research was supported by National Standard Technology Improvement Project (20011582) through the Korea Evaluation Institute of Industrial Technology (KEIT) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea).
